MS-20 LP & HP filter Clone experiments

I’m playing with a clone of the famous MS-20 filter.

Here are some shots of the filter output.

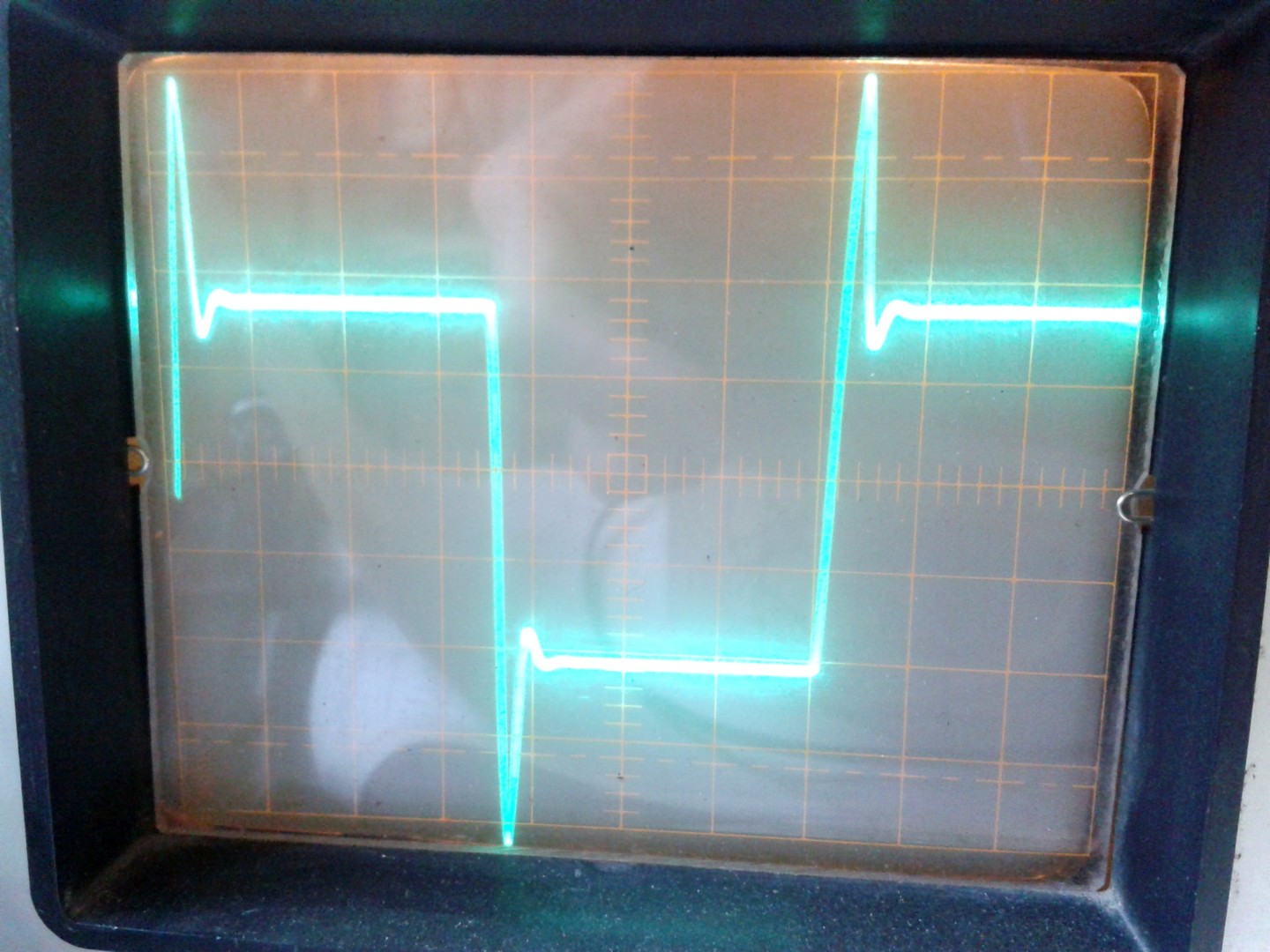

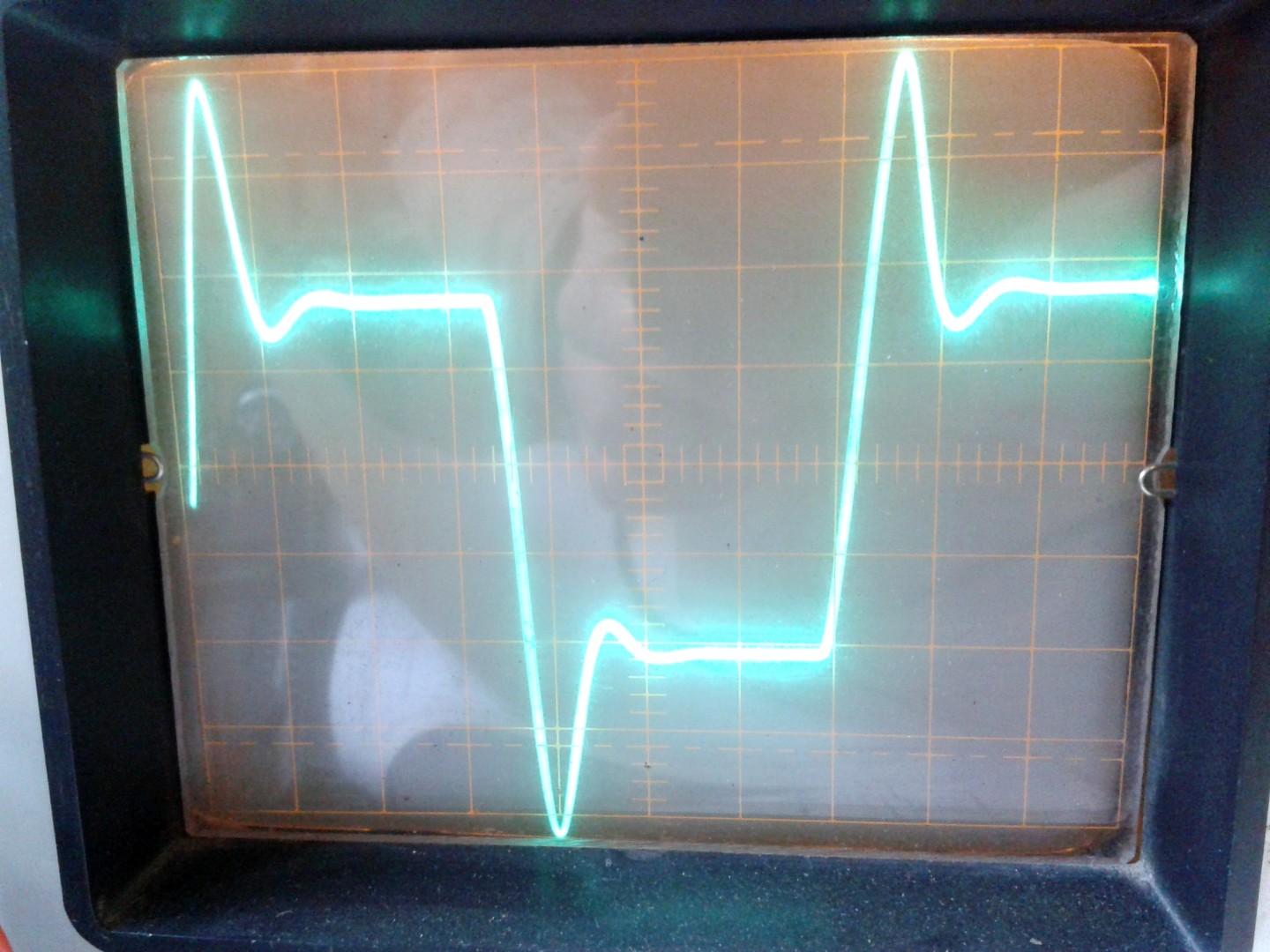

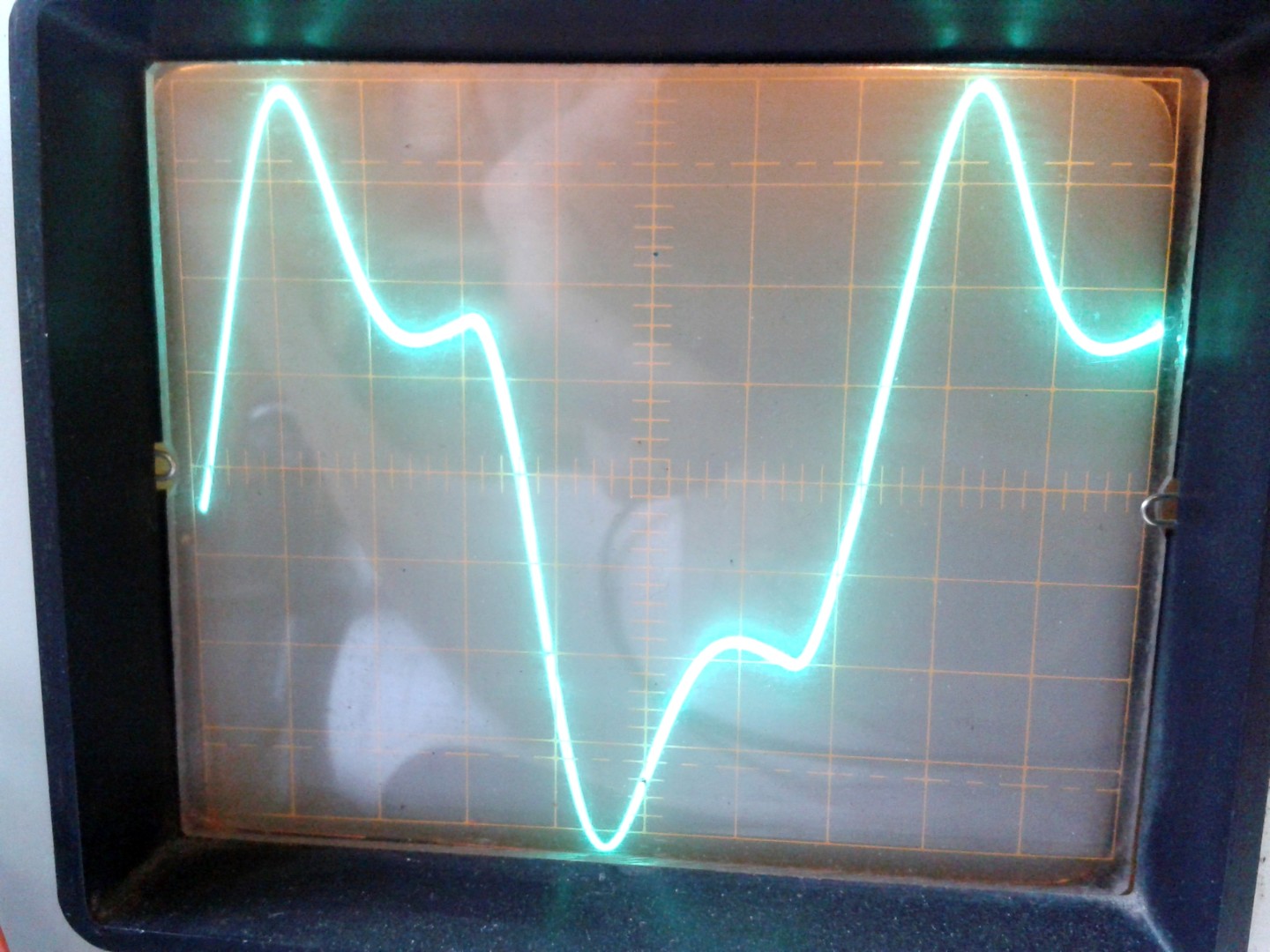

Here, the filter is fed with a square signal. The different pictures show the output signal at different cut-off frequencies and high resonance.
