Eurorack Power Bus – 28 Connectors

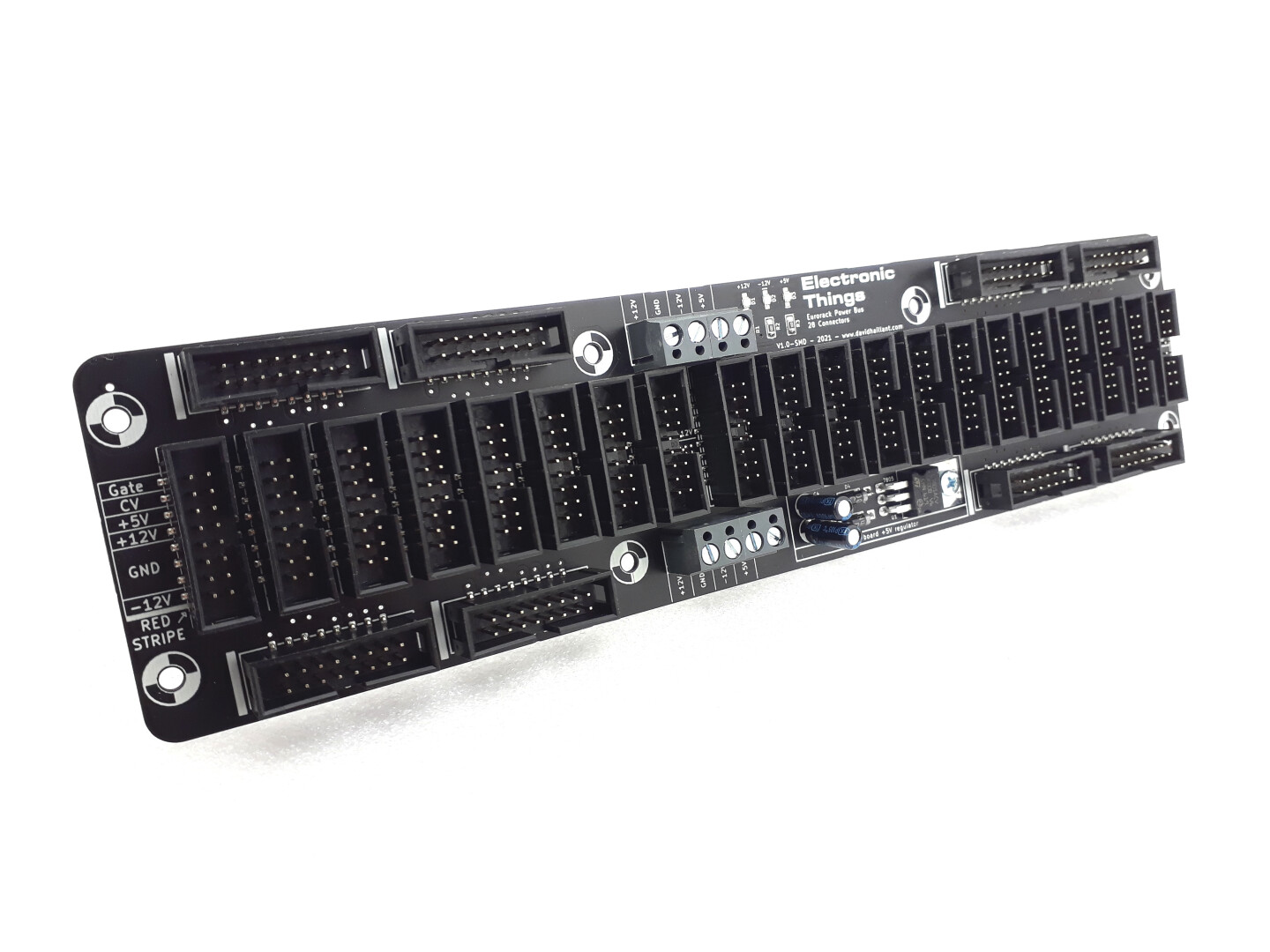

This is the biggest Eurorack Power Bus: 28 connectors on a 25cm x 6cm board!

There are different buses available, with various sizes and number of connectors.

It’s an other upgraded version of the classic Eurorack Power Bus.

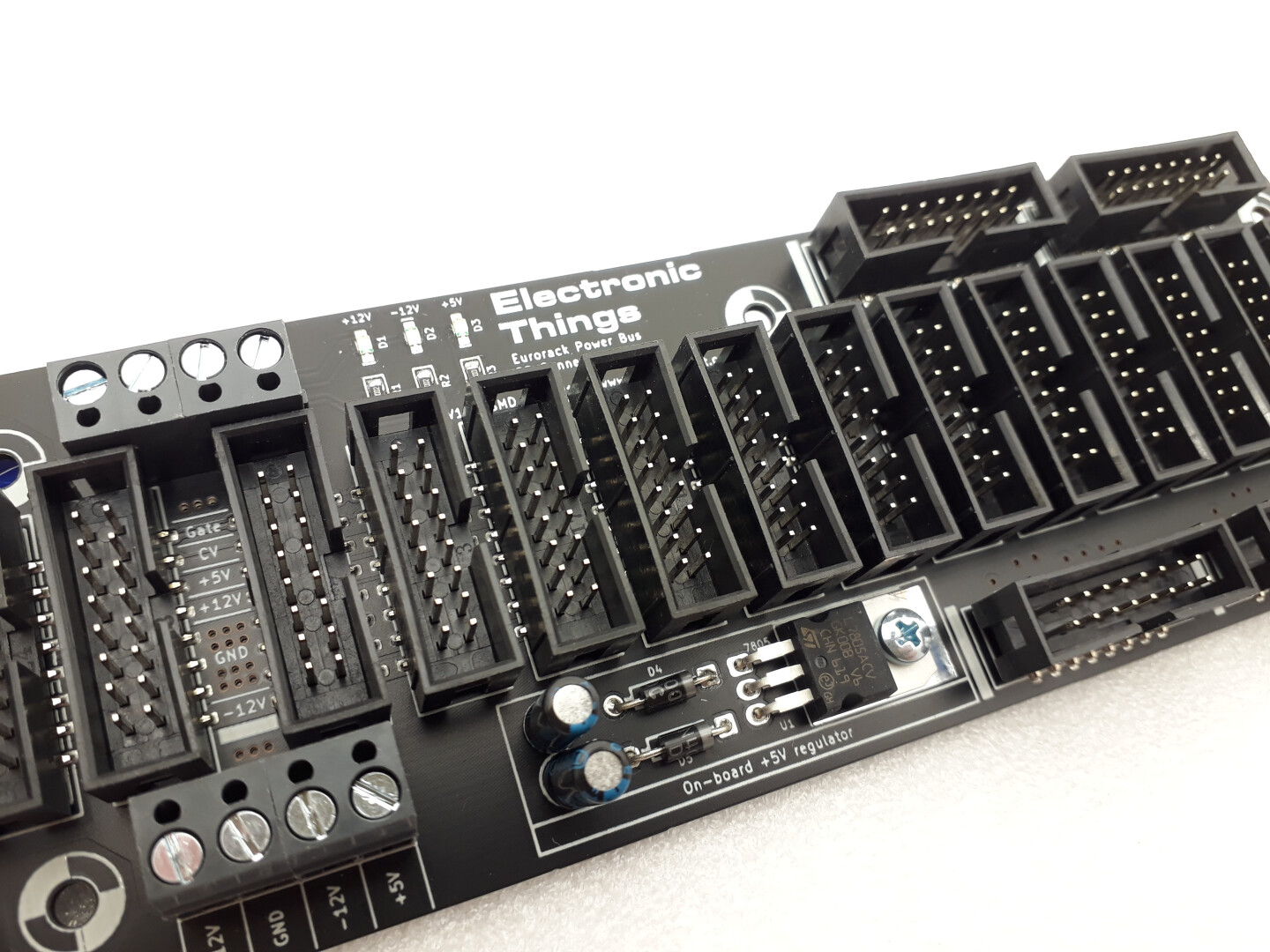

This power distribution board for Eurorack synths will easily power up to 28 modules. With on-board generated +5V rail (using the +12 V rail).
Place the Bus Board in the back of your Eurorack Skiff or your monster case and plug in it your modules.

The bus is 25 cm long, 6 cm wide (9.84″ x 2.36″).

There are 3 LEDs for visualizing the 3 Voltage Rails. This LEDs shows you if there’s energy on the rails, and if the polarities are correct.

Input is done through a Screw Terminal connector.

Screw Terminals are very versatile. You can connect easily to the Bus Board any Power Supply. You can replace it by any 5.08 mm pin pitch connector.
There’s one connector on top and one on bottom side of the bus.

HE-10 Connectors are keyed: they decrease the risk to connect the modules in wrong polarity.
But, you absolutely need to check your wiring twice before powering the bus!

Read the modules’ manual and documentations. Check the cable. Check again.
Check Again!

Documentation
