How to determine Through Hole LED Polarity?

LEDs are polarized components. Backward, they just don’t light on.
How to recognize the polarity of a LED?

LED symbol

The longest leg is the positive side.

So, the longest leg is connected to the Anode of the LED (the positive side).
But, when you cut the legs and the LED doesn’t light when it’s supposed to do, how can you tell if it’s backward or not?

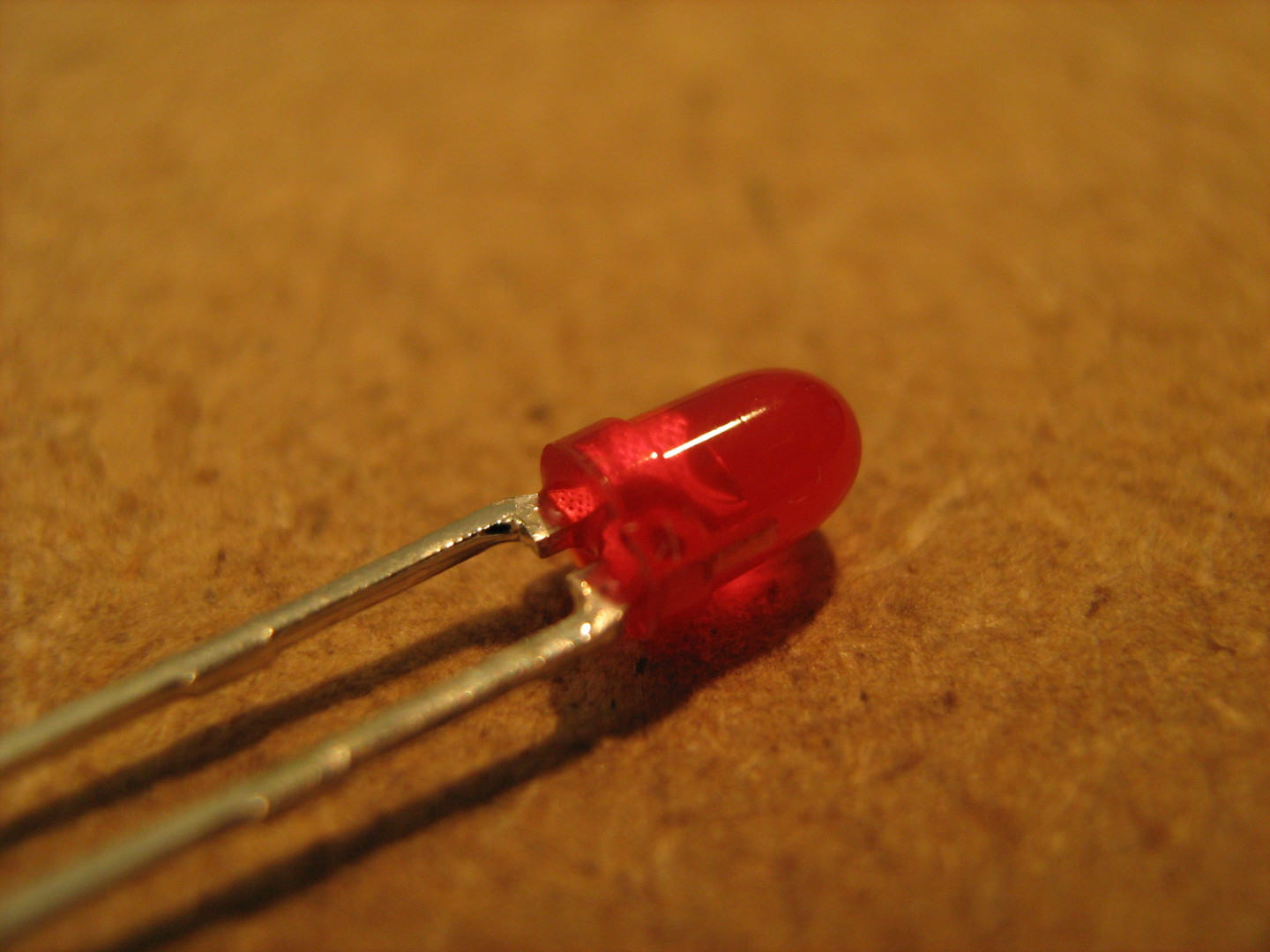

3mm LED

Well, if you look through the transparent case, you can see 2 non symmetrical shapes.

The big metal part inside the LED is the negative side.

The bigger and taller piece is always the cathode (the negative side).

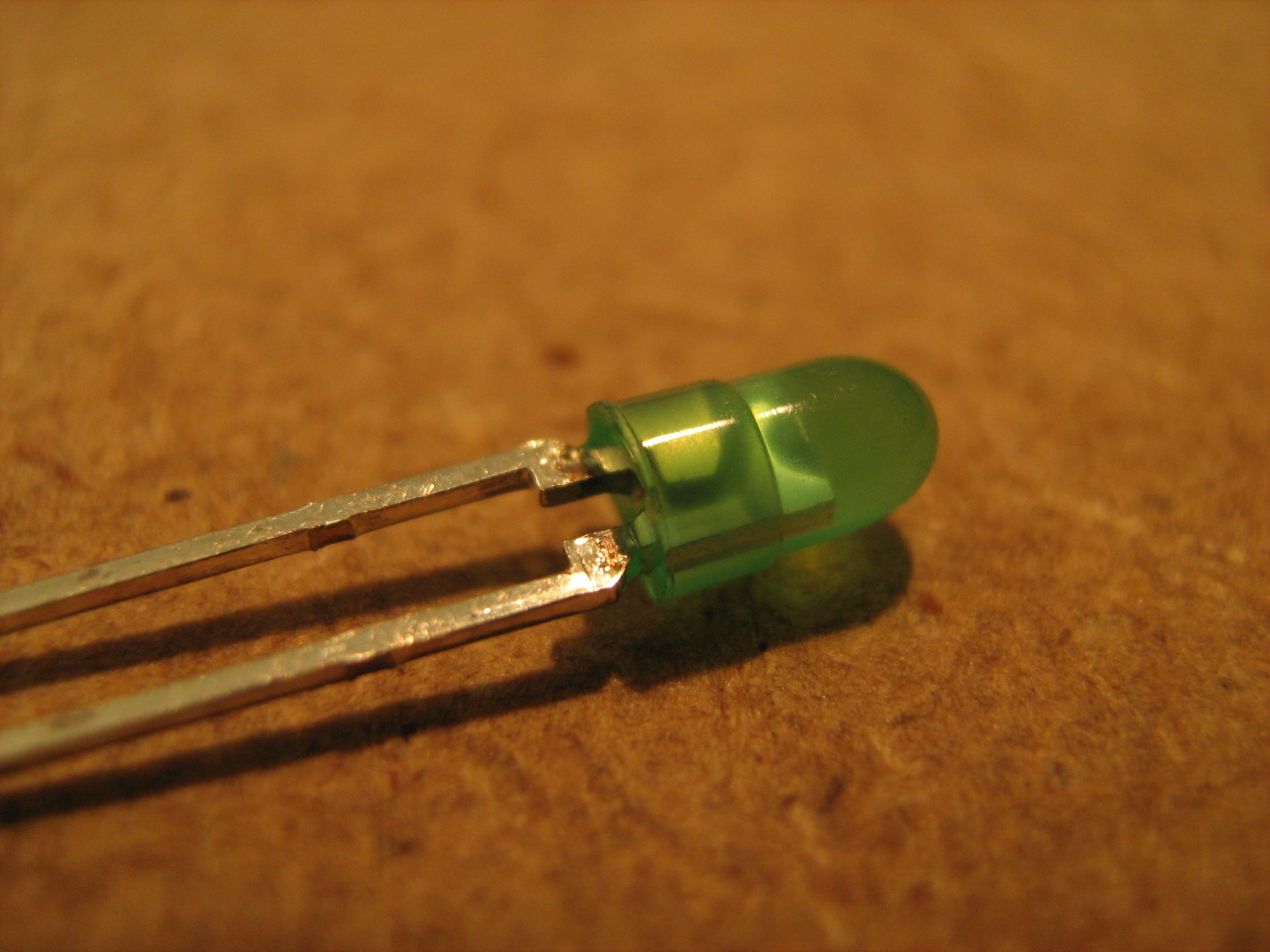

Same here, the big metal piece is the cathode (negative side) on the left.
LED schematic, from Wikipedia
LED Diagram
